Quick Start

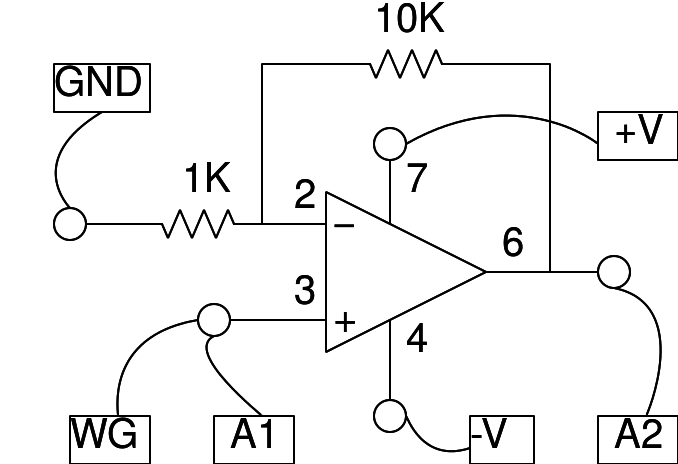

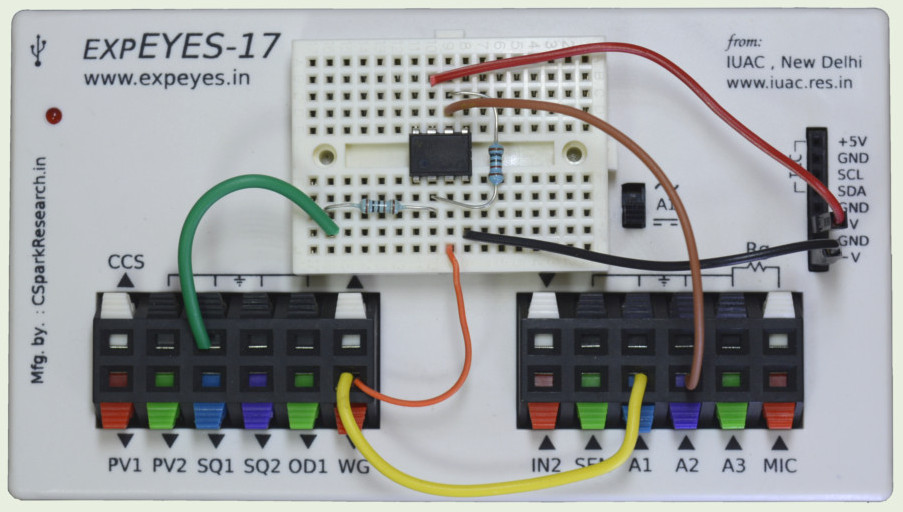

The schematic is wired as shown in the diagram below. Ri = 1k and Rf = 10k. The WG amplitude is set to 80 mV, you may try a 1 volt input to observe the clipping of the the output, since it exceeds the supply voltage of +/- 6 volts.
Screenshot of the UI
Screen shot of the oscilloscope program showing inputs and output of a Non-Inverting Amplifier. Theoretical Gain is -11.
Exercises
- Calculate the gain by fitting A1, and A2 by enabling the check-boxes next to them. gain = output/input
- What is the gain if Rf < Ri .
Write Python Code
This experiment can also be done by running this Python Code.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
import eyes17.eyes
p = eyes17.eyes.open()
from pylab import *
p.set_sine(200)
p.set_pv1(1.35) # will clip at 1.35 + diode drop
t,v, tt,vv = p.capture2(500, 20) # captures A1 and A2
xlabel('Time(mS)') ylabel('Voltage(V)')
plot([0,10], [0,0], 'black')
ylim([-4,4])
plot(t,v,linewidth = 2, color = 'blue')
plot(tt, vv, linewidth = 2, color = 'red')
show()
