The cryostat from American Magnetics was installed into a custom designed vibration isolated, EMI and acoustic shielded chamber. This post describes the preparation of the installation site !
A pictorial walkthrough of the installation of the He-4 based Cryostat at the SpinLab, IISER Mohali. This cryostat is equipped with a 3-axis vector magnet and a dynamic VTI capable of cooling samples down to 2 Kelvin.
Installation of the cryostat

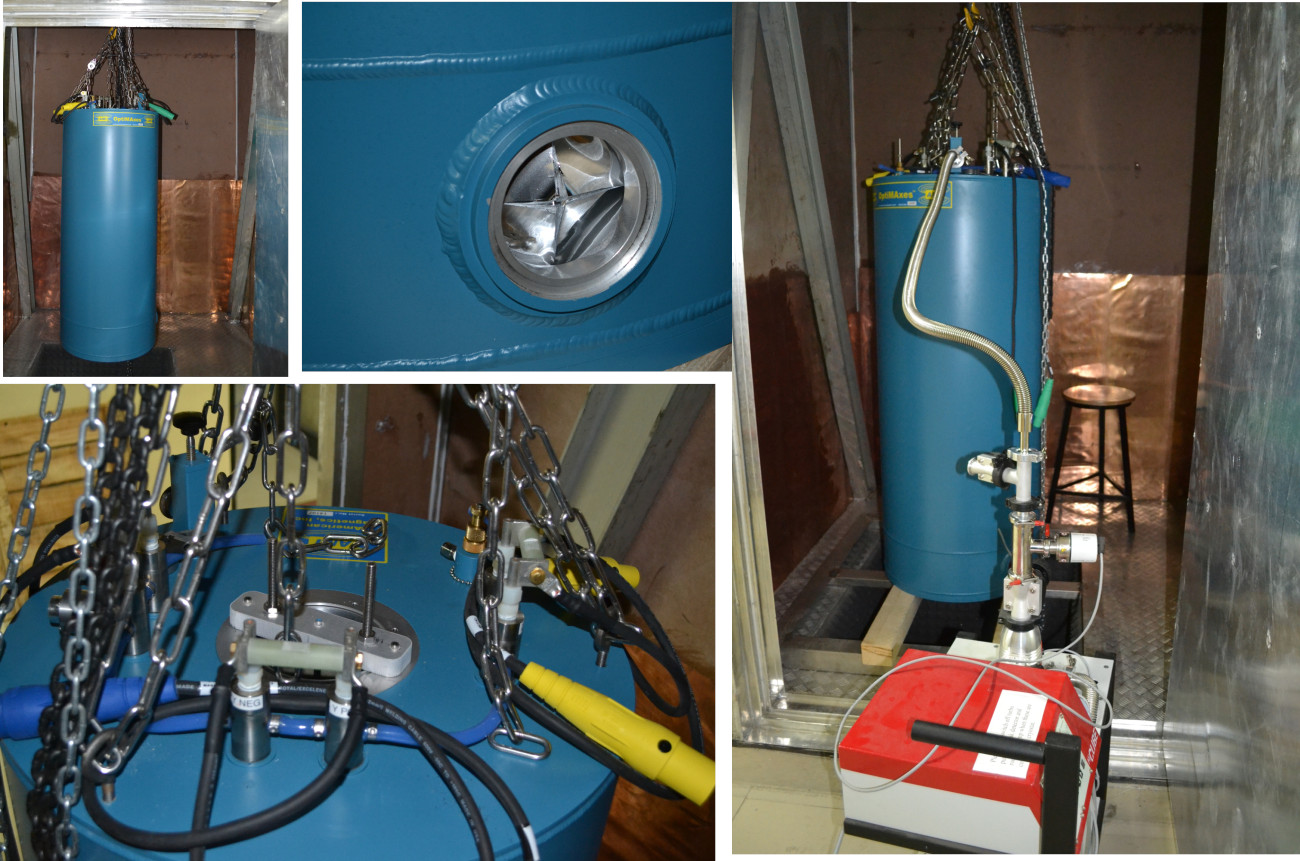

The cryostat was lowered into the pit with a pulley. Also shown is the safely valve at the bottom in case a magnet quenches or the nitrogen boil off outlets get clogged. After precooling with LN2, the Liquid Helium Dewar is used to fill the cryostat

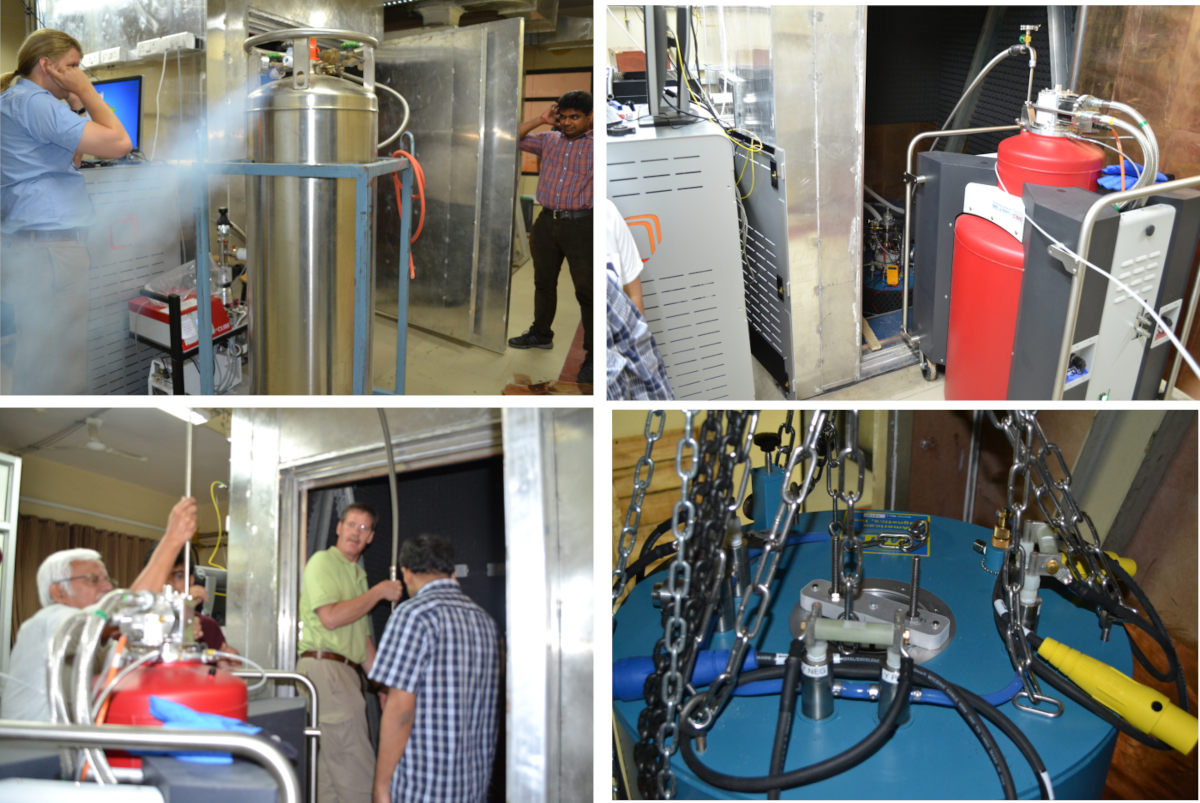

Letting off excess pressure from the LN2 dewar before transfer. Followed by transferring liquid helium by er Tom. The safety locks inside the cryostat to prevent shipping damage are also seen.

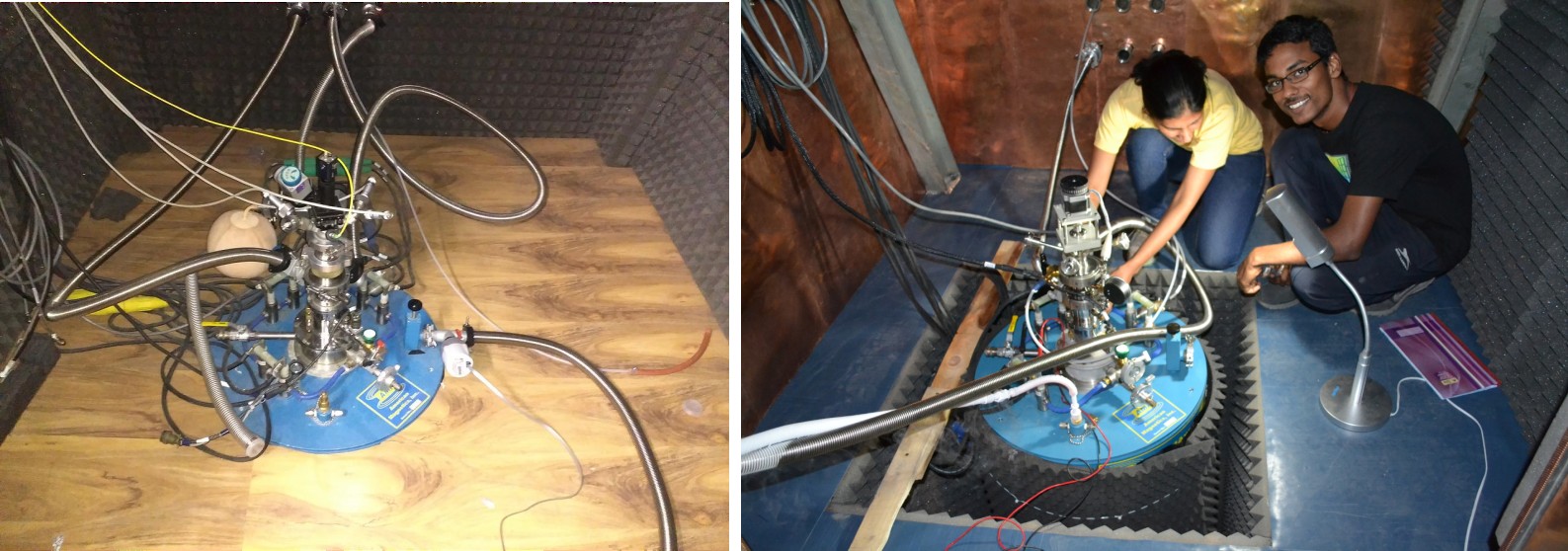

Abhishek and Leena fiddling with the new setup !

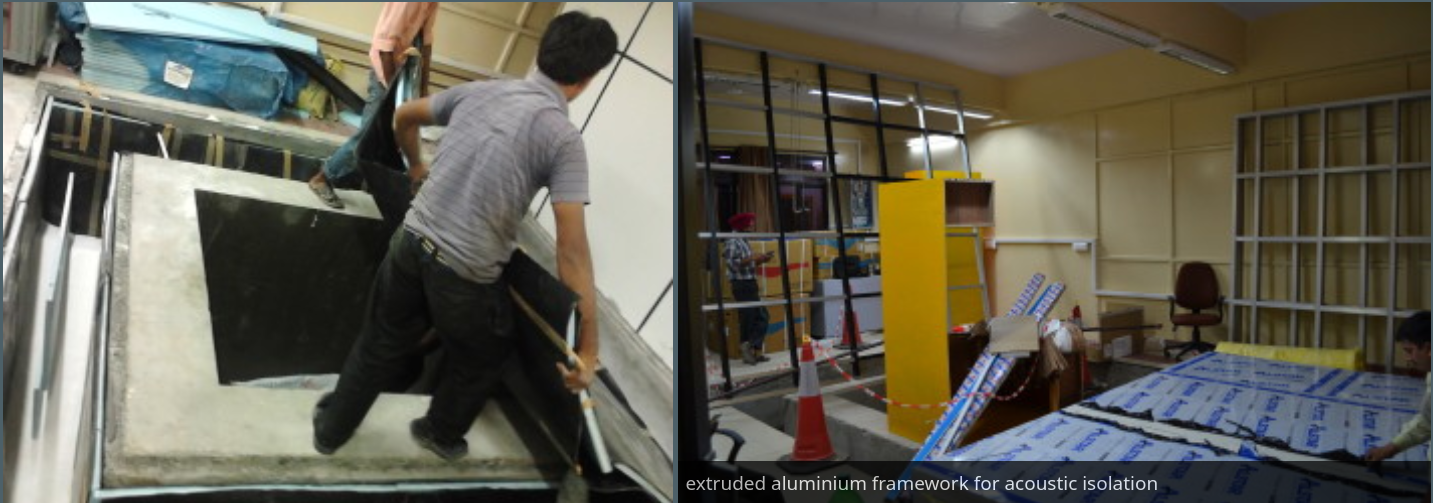

Construction: vibration , RF, and Acoustic Isolation .

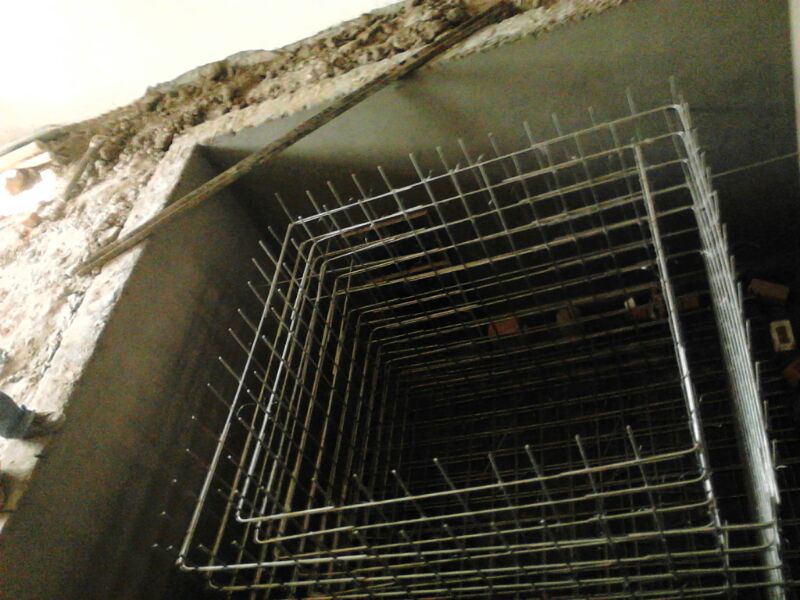

Vibration isolation pit mesh

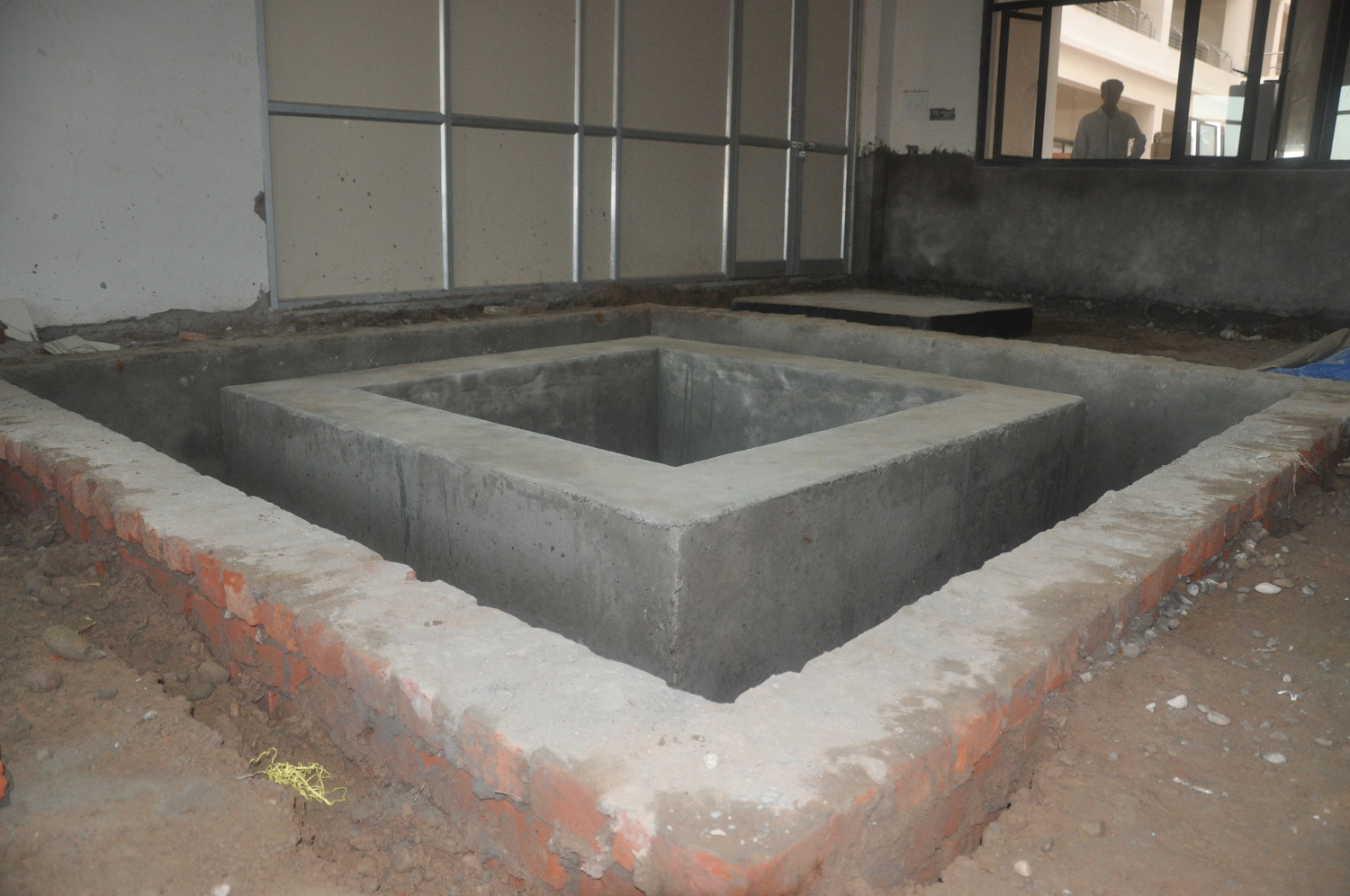

Vibration isolation pit mesh

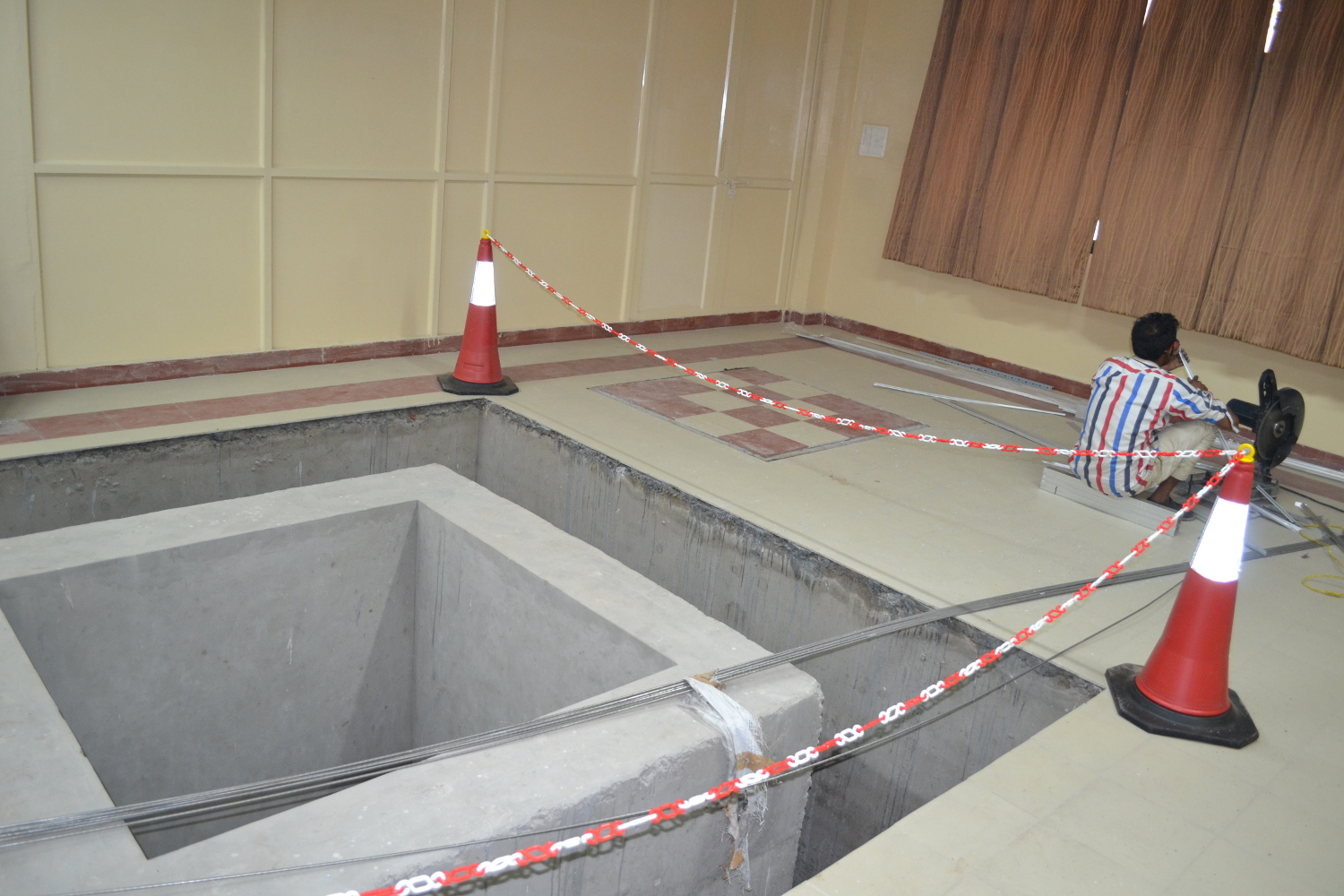

Tiling work done. Now for neoprene walls. The smaller square next to the pit is a solid RCC block for the Atomic Force Microscope.
